| Kod produktu | Łańcuch DIN8187 |

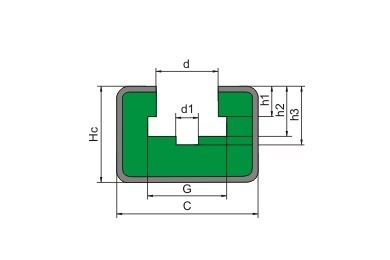

Wymiary łańcucha | C (mm) |
Hc (mm) |
G (mm) |
d (mm) |
d1 (mm) |
h1 (mm) |
h2 (mm) |
h3 (mm) |
Kod ceownika |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D00111 | - | 3/8” x 5/32” | 30 | 24 | 9,4 | 6,6 | 4,0 | 3,6 | 7,0 | 8,0 | C10 |
| D00112 | 06B-1 | 3/8” x 7/32” | 30 | 24 | 9,4 | 6,6 | 4,0 | 5,5 | 8,9 | 10,0 | C10 |
| D00113 | 083-1 | 1/2” x 3/16” | 30 | 24 | 10,8 | 8,0 | 5,0 | 4,5 | 8,0 | 9,5 | C10 |
| D00114 | 085-1 | 1/2” x 1/4” | 30 | 24 | 11,8 | 8,0 | 5,0 | 6,2 | 9,8 | 11,3 | C10 |
| D00115 | - | 1/2” x 1/4” | 30 | 24 | 12,8 | 8,8 | 5,0 | 6,2 | 10,2 | 11,7 | C10 |
| D00116 | 08B-1 | 1/2” x 5/16” | 30 | 24 | 12,8 | 8,9 | 5,0 | 7,4 | 11,5 | 13,0 | C10 |
| D00117 | - | 5/8” x 1/4” | 30 | 24 | 15,4 | 10,6 | 6,0 | 6,2 | 10,2 | 11,6 | C10 |
| D00118 | 10B-1 | 5/8” x 3/8” | 30 | 24 | 15,4 | 10,6 | 6,0 | 9,3 | 13,5 | 14,9 | C10 |
| D00119 | 12B-1 | 3/4” x 7/16” | 30 | 24 | 17,0 | 12,4 | 7,0 | 11,3 | 15,9 | 17,5 | C10 |
| D00120 | 16B-1 | 1” x 17mm | 45 | 40 | 24,0 | 16,4 | 10,0 | 16,0 | 25,7 | 27,0 | C11 |
| D00121 | 20B-1 | 1 1/4” x 3/4” | 45 | 40 | 28,0 | 20,0 | 11,0 | 18,0 | 29,5 | 31,7 | C11 |
| D00122 | 24B-1 | 1 1/2” x 1” | 65 | 55 | 36,6 | 27,0 | 16,0 | 24,0 | 38,2 | 41,2 | C13 |
| D00123 | 28B-1 | 1 3/4” x 31mm | 65 | 60 | 41,0 | 30,0 | 17,0 | 30,0 | 47,0 | 49,0 | C13 |
| D00124 | 32B-1 | 2” x 31mm | 65 | 60 | 44,6 | 31,0 | 19,0 | 30,0 | 47,3 | 50,0 | C13 |
